You’ve finished your ride and need to store your GOTRAX scooter quickly. Whether you’re commuting to work, taking public transit, or tucking it into a closet, knowing how to fold a GOTRAX scooter correctly is essential for safety, battery preservation, and protecting your investment. Different GOTRAX models use different folding systems, so using the wrong technique can lead to frustration or damage.
This guide covers power-down protocols, model-specific release techniques, the complete folding and locking sequence, and critical unfolding warnings. By the end, you’ll fold your scooter confidently in under 15 seconds, every time.
Power Down Before Folding
Turn Off the Scooter
Before touching any folding mechanism, press the power button to turn off your GOTRAX scooter completely. This is a required safety step, not a suggestion.
Why does this matter? An active scooter could accidentally engage the throttle during folding, creating a dangerous situation. Additionally, leaving the power on drains the battery while stored, which reduces overall lifespan and leaves you with a dead scooter on your next ride.
Confirm Power Is Off
Look at the display screen. On models like the GXL V2 or Apex, the LED screen should show no signs of life. Only proceed once the system is fully powered down.
Pro Tip: Make power-off your automatic habit immediately after dismounting. It keeps you safe and protects your battery health long-term.
Identify Your Folding Mechanism
GOTRAX scooters fall into two main categories based on their folding systems. Using the wrong method can lead to frustration or damage, so start here.
Check Your Model Type
Pin-Release Models (Category A)
These models use a dual-release system with a main latch and a secondary safety pin.
• GXL V2
• Rival
• Apex / Apex LE
• XR Ultra / XR Elite / XR Elite Max
• G3 Plus
Tab-and-Latch Models (Category B)
These models rely on a silver tab and downward-pulling latch located at the base of the stem.
• G3
• G4
• Eclipse
• GMAX / GMAX Ultra
• G Pro
Quick Visual Cue: If you see a small silver lever at the front of the stem base, you have a Tab-and-Latch model. If there’s a pin on the left side near the wheel, it’s Pin-Release.
Fold Pin-Release Models Correctly
Locate the Safety Pin and Latch
On the left side of the stem, just above the front wheel, find two components. The folding latch is the main lever, and the safety pin is the small metal pin extending from the housing. Both must be released simultaneously for the mechanism to work.
Release Both Mechanisms at Once
- Use your dominant hand to pull up or back on the folding latch.
- With your other hand, press in the safety pin.
- Do this at the same time. If you don’t, the stem won’t unlock.
Common Mistake: Releasing only the latch while ignoring the pin. This makes the scooter feel “stuck,” but the real issue is incomplete disengagement.
Pivot the Stem Down
Once both are released, gently guide the handlebars down toward the deckboard. Don’t force it. Smooth motion only means the mechanism is working correctly.
Fold Tab-and-Latch Models Safely
Find the Silver Release Tab
At the base of the tiller, where the stem meets the deck, look for a shiny silver tab on the front of mechanism. Behind it sits the main latch, which operates vertically.
Pull Tab Up, Then Latch Down
- Pull the silver tab upward fully with one hand.
- While holding it up, pull the main latch downward with your other hand.
- You should feel the stem unlock immediately.
Warning: If the mechanism resists, double-check that the silver tab is fully raised. Forcing it can bend internal components and void your warranty.
Lower the Handlebars Smoothly
With the latch disengaged, lower the tiller until it rests over the deckboard. Keep your grip steady to avoid sudden drops that could damage the plastic housing.
Lock the Scooter in Folded Position
Align the Tiller Hook

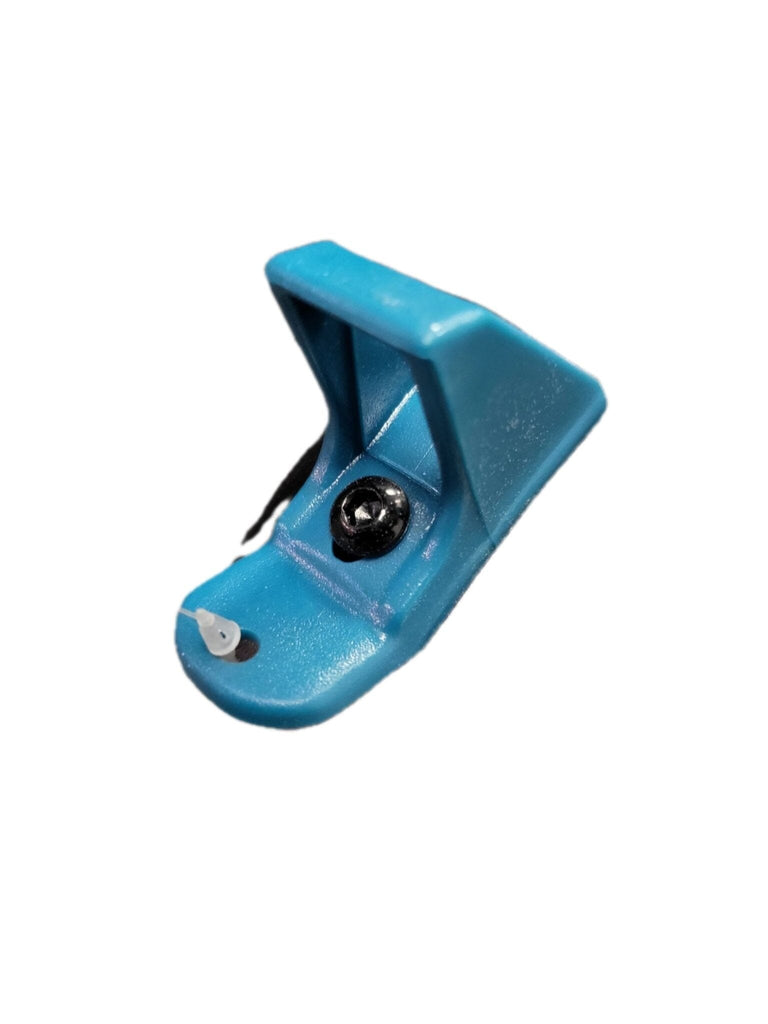

As you lower the stem, watch for the hook at the base of the tiller. It’s designed to catch onto the fender latch, which is a small metal bracket on the rear fender.
Press Until It Clicks
Push the tiller down firmly so the hook snaps into the fender latch.
Listen for the Snap
A clear “click” or “snap” means the lock is engaged. This sound is your confirmation that the scooter is secure and ready for transport.
Expert Note: Never assume it’s locked based on position alone. Always verify with the audible cue. Visual confirmation is insufficient.
Unfold Without Damage
Release the Fender Latch Properly
To unfold, you must disengage the tiller hook from the fender latch. The technique differs slightly between model categories.
For Pin-Release Models: Press the Rear of the Latch
Apply pressure to the back of the fender latch, not the fender itself. This releases the hook safely without damaging the plastic housing.
Critical Warning: Never press down on the fender itself. This can crack or warp the plastic housing, especially on GXL V2 or Apex models. The repair cost outweighs the inconvenience of proper technique.
For Tab-and-Latch Models: No Special Pressure Needed
Just lift the tiller. The hook will release naturally once the scooter is upright and the mechanism clears the latch.
Raise the Tiller to Riding Position
Lift the handlebars until they’re vertical. Make sure the stem is fully extended and properly aligned with the deck.
Re-Engage the Main Lock
Pin-Release Models
Ensure the safety pin clicks back into place. Confirm the main latch locks securely before riding.
Tab-and-Latch Models
Push the main latch upward until it locks. The silver tab should snap forward automatically.
Final Check: Try to wiggle the stem. If there’s any movement, the lock isn’t engaged. A loose stem is unsafe to ride.
Avoid Common Folding Mistakes
Mistake: Skipping the Power-Off Step
Leaving the scooter on during folding risks accidental acceleration and battery drain. This also shortens the overall battery lifespan.
✅ Fix: Always power down first. No exceptions.
Mistake: Forcing the Mechanism
If the stem won’t fold, don’t push harder. Chances are the release wasn’t fully activated, and forcing it causes damage.
✅ Fix: Recheck your model’s steps. On Tab-and-Latch models, ensure the silver tab is fully up before pulling the latch down.
Mistake: Ignoring the Click
Assuming the scooter is locked because it “looks” folded is risky. The hook could slip during transport.
✅ Fix: Wait for the audible snap. If you don’t hear it, adjust and try again.
Mistake: Storing Improperly
Placing heavy items on top of the folded scooter can deform the latch or fender over time.
✅ Fix: Store upright or on its side with the latch protected from weight bearing down on it.
Maintenance Tips for Long-Lasting Folds
Clean the Folding Mechanism Monthly
Dirt and debris can jam the latch or pin, making folding difficult.
• Wipe the latch area with a dry cloth.
• Use compressed air to blow out dust from crevices around the safety pin and fender hook.
• Remove any debris that has accumulated near the hinge points.
Lubricate Sparingly (Once Every 3 Months)
Apply a dry silicone lubricant (not oil) to the safety pin, latch pivot points, and fender hook.
Why Dry Lube? It won’t attract dust like oily sprays, which actually cause more problems than they solve.
Inspect for Wear Every 20 Folds
Check for cracks in the fender latch, bent safety pins, and loose screws on the stem base. Tighten any loose hardware with the included Allen wrench.
Transport and Storage Best Practices
Carry with the Hook Facing Up
When lifting the folded scooter, keep the tiller hook on top. This prevents accidental snagging on bags or clothing and protects the latch mechanism from pressure damage.
Store in a Dry, Stable Location
Avoid damp garages or car trunks in extreme heat. Moisture and temperature swings degrade electrical components and plastic parts over time.
Use a Scooter Bag for Travel
If taking your scooter on public transit or flights, a padded bag protects the folding mechanism, prevents scratches, and makes carrying easier.
Pro Tip: Some airlines allow folded scooters as carry-ons. Check size limits and battery regulations before booking.
Quick Reference: Folding at a Glance
| Step | All Models |
|---|---|
| 1. Power Off | Press power button until display turns off |
| 2. Identify Type | Pin-Release (safety pin) or Tab-and-Latch (silver tab) |
| 3. Release Mechanism | Pin-Release: Pull latch and press pin together. Tab-and-Latch: Pull tab up, then pull latch down |
| 4. Fold Stem | Lower handlebars smoothly to deck |
| 5. Lock in Place | Push tiller hook into fender latch until it clicks |
| 6. Unfold Safely | Pin-Release: Press rear of latch only. All: Re-engage stem lock before riding |
Key Takeaways for Folding Your GOTRAX Scooter
Knowing how to fold a GOTRAX scooter properly protects your investment and keeps you safe. The two main mechanisms (Pin-Release and Tab-and-Latch) require different techniques, so always identify your model first. Always power off before folding, listen for the audible click to confirm the lock, and never force the mechanism if it resists.
Whether you own a GXL V2 or a GMAX Ultra, following the correct model-specific steps ensures smooth operation every time. Maintain the mechanism monthly by cleaning debris and applying dry silicone lubricant. Store your folded scooter in a dry, stable location, and consider a padded bag for travel.
Now that you’re equipped with the right technique, folding your scooter should take less than 15 seconds. Safe, simple, and stress-free.
Frequently Asked Questions About Folding GOTRAX Scooters
How do I know which folding mechanism my GOTRAX scooter has?
Check the left side of the stem near the front wheel. If you see a safety pin, it’s a Pin-Release model (Category A). If you see a silver tab at the base of the stem, it’s a Tab-and-Latch model (Category B).
Why won’t my GOTRAX scooter fold even after following the steps?
The most common reason is incomplete release. On Pin-Release models, you must release the latch and safety pin simultaneously. On Tab-and-Latch models, the silver tab must be fully raised before pulling the latch down. Never force the mechanism.
Can I store my folded GOTRAX scooter vertically?
Yes, as long as the lock is fully engaged. However, avoid placing heavy objects on top of the folded scooter, as this can deform the fender latch over time.
How often should I lubricate the folding mechanism?
Apply dry silicone lubricant once every three months, or more frequently if you ride in dusty or sandy conditions. Avoid oil-based lubricants, which attract debris and cause buildup.
What happens if I press on the fender instead of the latch when unfolding?
Pressing directly on the fender can crack or warp the plastic housing, particularly on GXL V2 and Apex models. Always apply pressure to the rear of the fender latch when unfolding Pin-Release models.
